Broad Capacity Coverage
Capacities from 240 GB to 7.68 TB in multiple form factors, easily meeting enterprise application requirements of any scale.

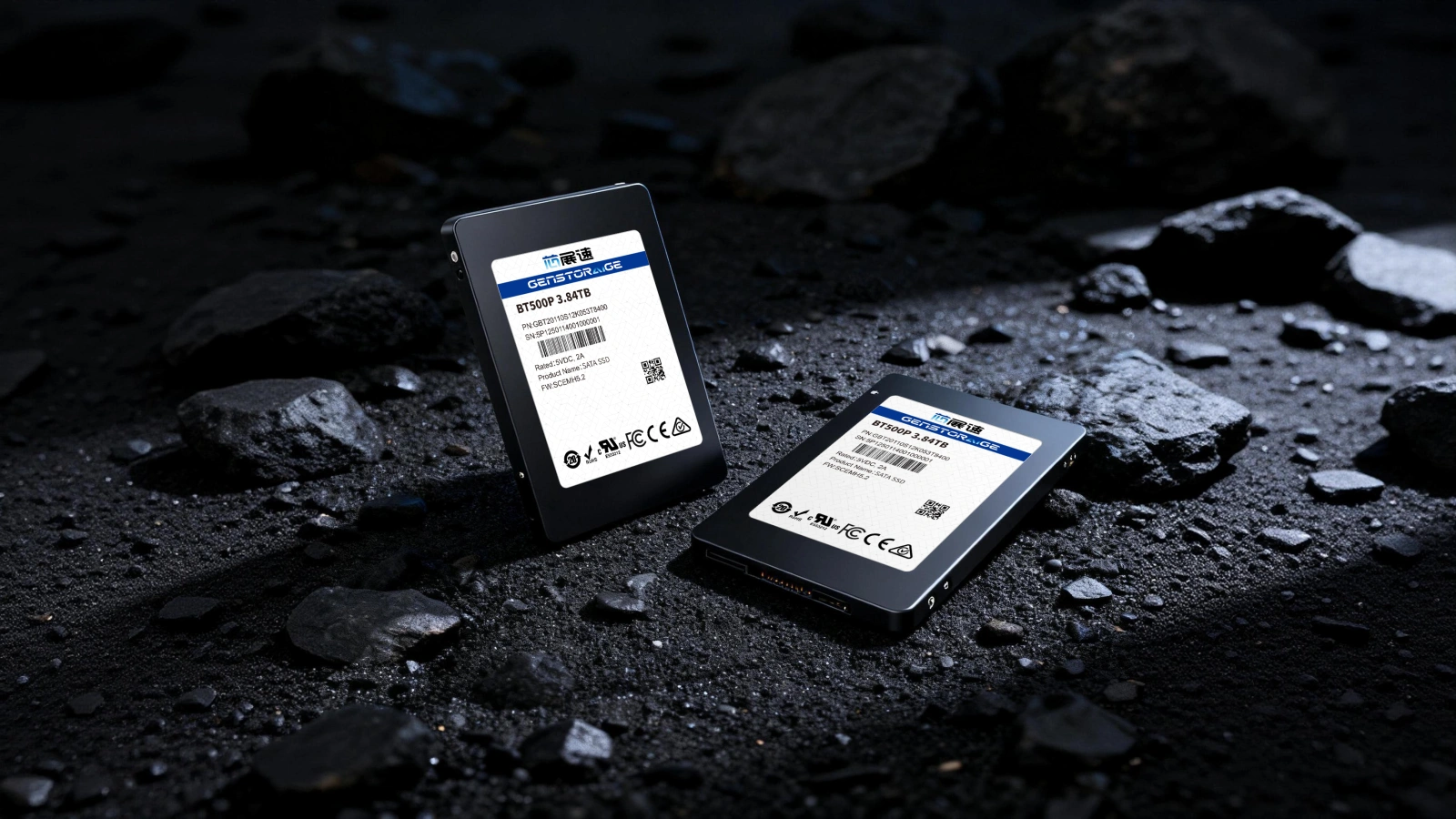

BT500Proven and Reliable SATA SSD
A mature, proven enterprise SATA SSD
Available in capacities from 240 GB to 7.68 TB, with multiple DWPD options and two form factors: 2.5-inch and M.2 2280.
BT500
Enterprise SATA SSD
Built on a proven 8-channel enterprise SATA controller, delivering outstanding performance, low latency, and low power consumption, with 4K random read/write performance up to 98K/77K IOPS.
BT500
High Performance, Low Latency, High Reliability
Based on fourth-generation LDPC error correction, with end-to-end data protection and enhanced power-loss protection for enterprise-class reliability — the ideal choice for legacy storage upgrades and server boot drives.
About GenstorAIge
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.
Outstanding Performance and Power Efficiency
128K sequential read/write bandwidth up to 550/530 MB/s and 4K random read/write performance up to 98K/40K IOPS, fully unleashing the potential of the SATA III interface.
Enterprise-Class Security and Reliability
End-to-end data protection, enhanced power-loss protection, and fourth-generation LDPC ECC, with an MTBF of up to 2 million hours and a 5-year warranty across the entire series.
Dependable Quality Assurance
Rigorous quality control across every stage, from design and validation to component screening and production testing, ensures high product reliability and smooth, stable operation for customer applications.

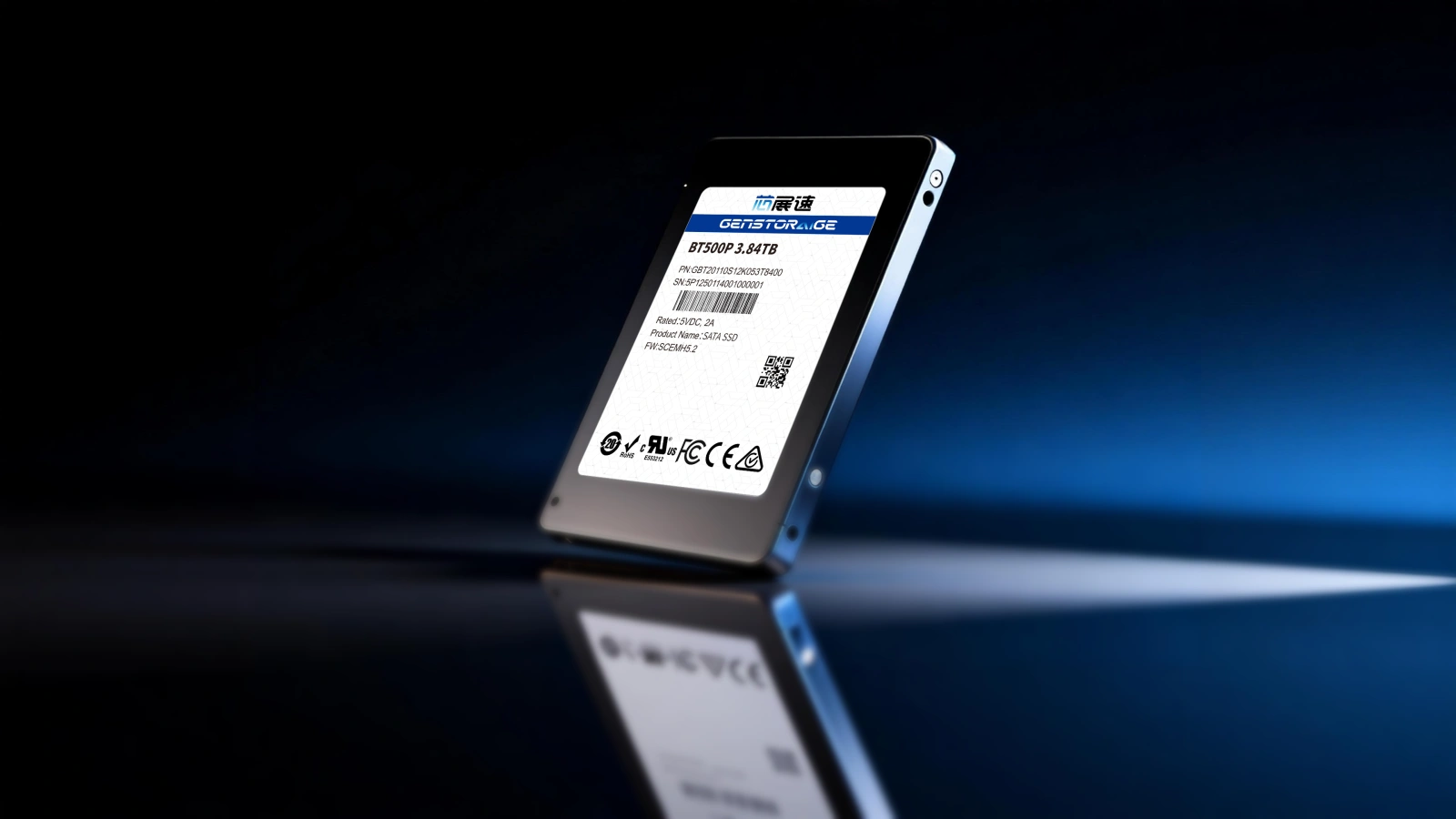

Outstanding Performance and Power Efficiency
Powered by a proven enterprise SATA controller, the BT500 delivers 128K sequential read/write bandwidth up to 550/530 MB/s and 4K random read/write up to 98K/40K IOPS. With active power as low as 2.3 W and idle power as low as 1.2 W, it outperforms comparable products in power efficiency while maintaining high performance.
Specifications
| Product | BT500A | ||
|---|---|---|---|
| Capacity | 240GB | 480GB | 960GB |
| 128K sequential read bandwidth (MB/s) | 530 | 550 | 550 |
| 128K sequential write bandwidth (MB/s) | 300 | 500 | 530 |
| 4K random read (KIOPS) | 60K | 90K | 98K |
| 4K random write (KIOPS) | 10K | 15K | 30K |
| Active power (W) | 2.3 | 2.8 | 2.8 |
| Idle power (W) | 1.2 | 1.3 | 1.3 |
| Product PN | GAT20110S12K05240G00 | GAT20110S12K05480G00 | GAT20110S12K05960G00 |
| Product | BT500P | ||||
|---|---|---|---|---|---|
| Capacity | 480GB | 960GB | 1920GB | 3840GB | 7680GB |
| 128K sequential read bandwidth (MB/s) | 550 | 550 | 550 | 550 | 550 |
| 128K sequential write bandwidth (MB/s) | 360 | 530 | 530 | 530 | 530 |
| 4K random read (KIOPS) | 92K | 98K | 98K | 98K | 97K |
| 4K random write (KIOPS) | 20K | 33K | 40K | 30K | 23K |
| Active power (W) | 2.7 | 3.1 | 3.1 | 3.4 | 3.8 |
| Idle power (W) | 1.3 | 1.3 | 1.4 | 1.5 | 1.6 |
| Product PN | GBT20110S12K05480G00 | GBT20110S12K05960G00 | GBT20110S12K051T9200 | GBT20110S12K053T8400 | GBT20110S12K057T6800 |
| Functional features | |
|---|---|
| Interface | SATA III |
| Form factor | BT500P: 2.5-inch; BT500A: 2.5-inch, M.2 2280 |
| Endurance (DWPD) | 1 DWPD |
| UBER | <1 sector per 10^17 bits read |
| MTBF | 2 million hours |
| Features | 4th-generation LDPC, end-to-end data protection, enhanced power-loss protection |
| Warranty | 5 years |
