Key Features
PCIe 5.0 1x4/2x2 (dual-port), NVMe 2.0, capacities up to 122.88 TB, form factor: U.2, DWPD: 0.3, 128 namespaces, power-loss data protection, and TCG Opal 2.0 support.

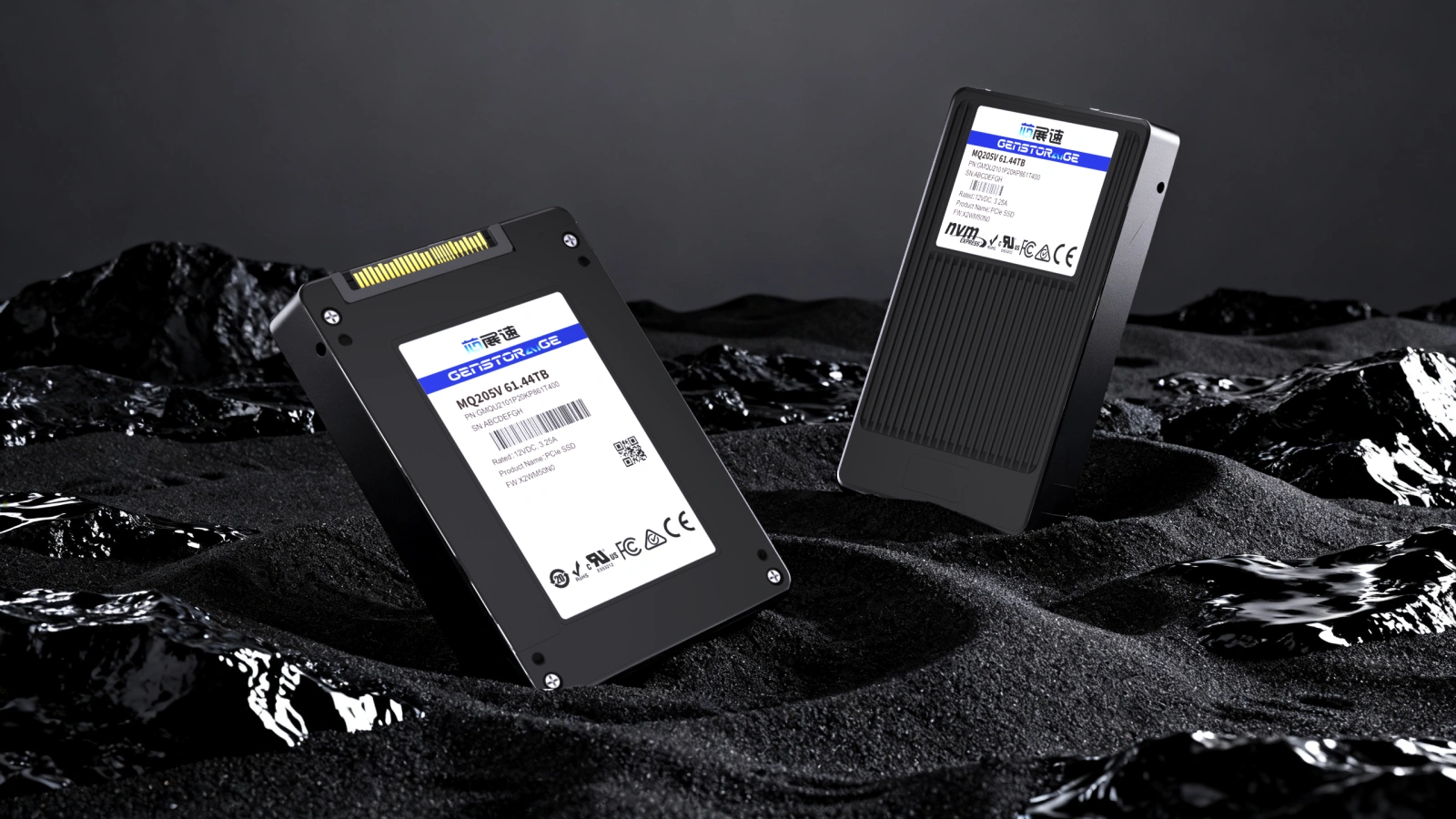

MQ205Ultra-High-Capacity PCIe 5.0 SSD
Ultra-high-capacity enterprise PCIe 5.0 SSDs
The GenstorAIge MQ200 & MQ205 series enterprise SSDs are purpose-designed for the storage demands of the AI and big data era.
MQ205
Enterprise PCIe 5.0 SSD
Offering up to 122.88 TB per drive and massive PCIe 5.0 bandwidth of 14.7 GB/s.
MQ205
Enterprise PCIe 5.0 SSD
The MQ series supports single-port and dual-port designs. Self-Encrypting Drive (SED) support compliant with FIPS-140 cryptographic standards is available, with solutions tailored to customer requirements.
About GenstorAIge
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.
Exceptional Performance
128K sequential bandwidth up to 14.7 GB/s and 4K random performance up to 2,700K IOPS.
End-to-end data protection, enhanced power-loss protection, metadata protection, and secure erase; NVMe-MI 1.2 compliant.
Ultra-High Capacity
Available in 30.72 TB and 122.88 TB, fully leveraging the capacity advantages of QLC NAND — the ideal choice for building ultra-high-capacity storage systems.
Product advantages
AES-XTS 256-bit encryption, end-to-end data protection, metadata protection, SECDED, Sanitize, NVMe-MI (Management Interface), and SMBus.
Advanced Features
Dual-port, NVMe-MI, and support for up to 128 namespaces.

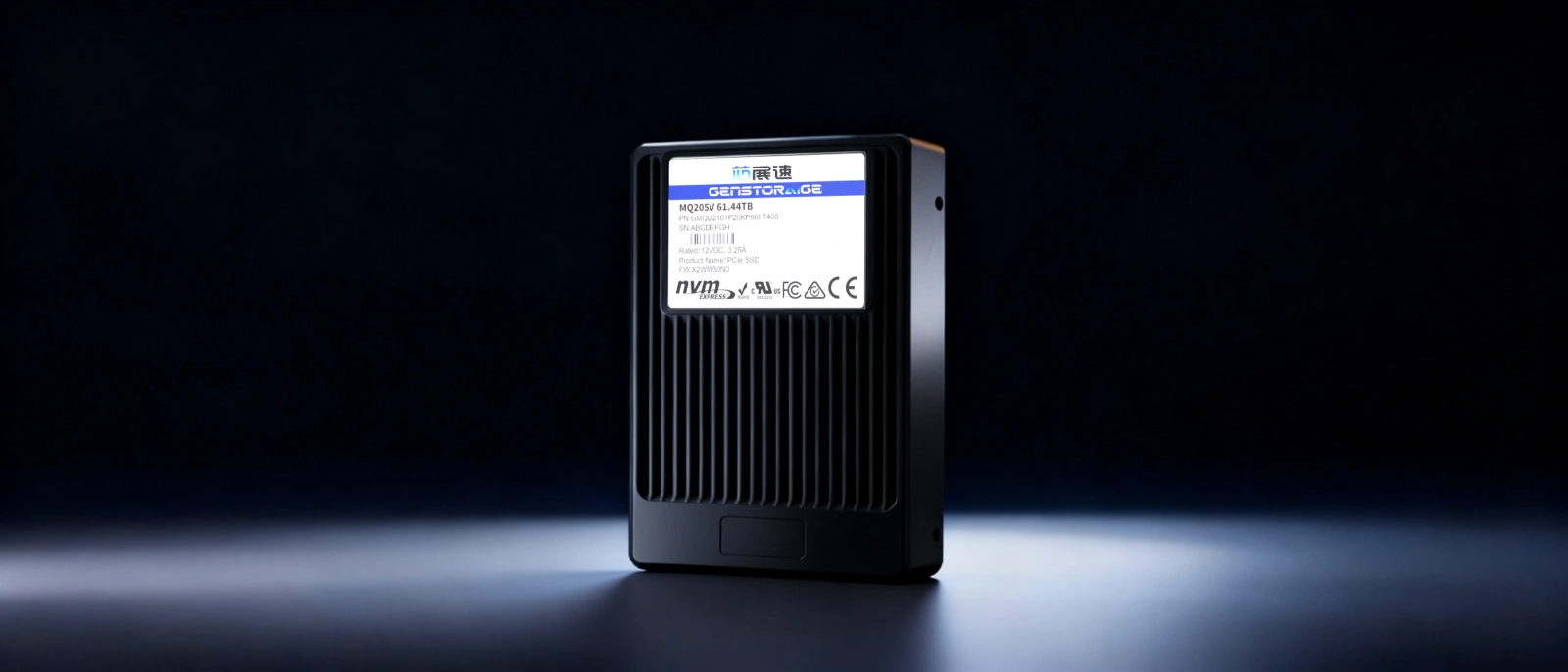

Sequential Performance
Sequential read up to 14.7 GB/s
Sequential write up to 4 GB/s
Random Performance
Random read up to 2,700K IOPS
Random write up to 40K IOPS
Specifications
| Product | MQ205 | |||
|---|---|---|---|---|
| Capacity | 15.36TB | 30.72TB | 61.44TB | 122.88TB |
| Sequential read bandwidth (MB/s) | 14,000 | 14,000 | 14,000 | 14,000 |
| Sequential write bandwidth (MB/s) | 1,900 | 1,800 | 2,700 | 2,700 |
| 4K random read (IOPS) | 2,500K | 2,500K | 2,500K | 2,500K |
| 16K random write (IOPS) | 34K | 34K | 34K | 34K |
| Product PN | GMQU2201P20KP815T300 | GMQU2101P20KP830T700 | GMQU2201P20KP861T400 | GMQU2101P20KP8122T00 |
| Functional features | |
|---|---|
| Power consumption | Idle 5W, Active <25W |
| Interface | PCIe 5.0 1x4 / 2x2 (dual-port), NVMe 2.0 |
| Form factor | U.2 |
| Media | 3D QLC |
| Endurance (DWPD) | 0.3 |
| UBER | <1 sector per 10^18 bits read |
| MTBF | 2.5 million hours |
| Operating temperature | 0°C ~ 70°C |
| Storage temperature | -40°C ~ 85°C |
| Warranty | 5 years |
| Key features | End-to-end data protection, power-loss protection, 128 namespaces, NVMe-MI, AES-256, TCG Opal 2.0 |
