Available in single-port and dual-port configurations and three form factors — U.2, E3.S, and E1.S — offering richer product options for diverse deployment requirements.

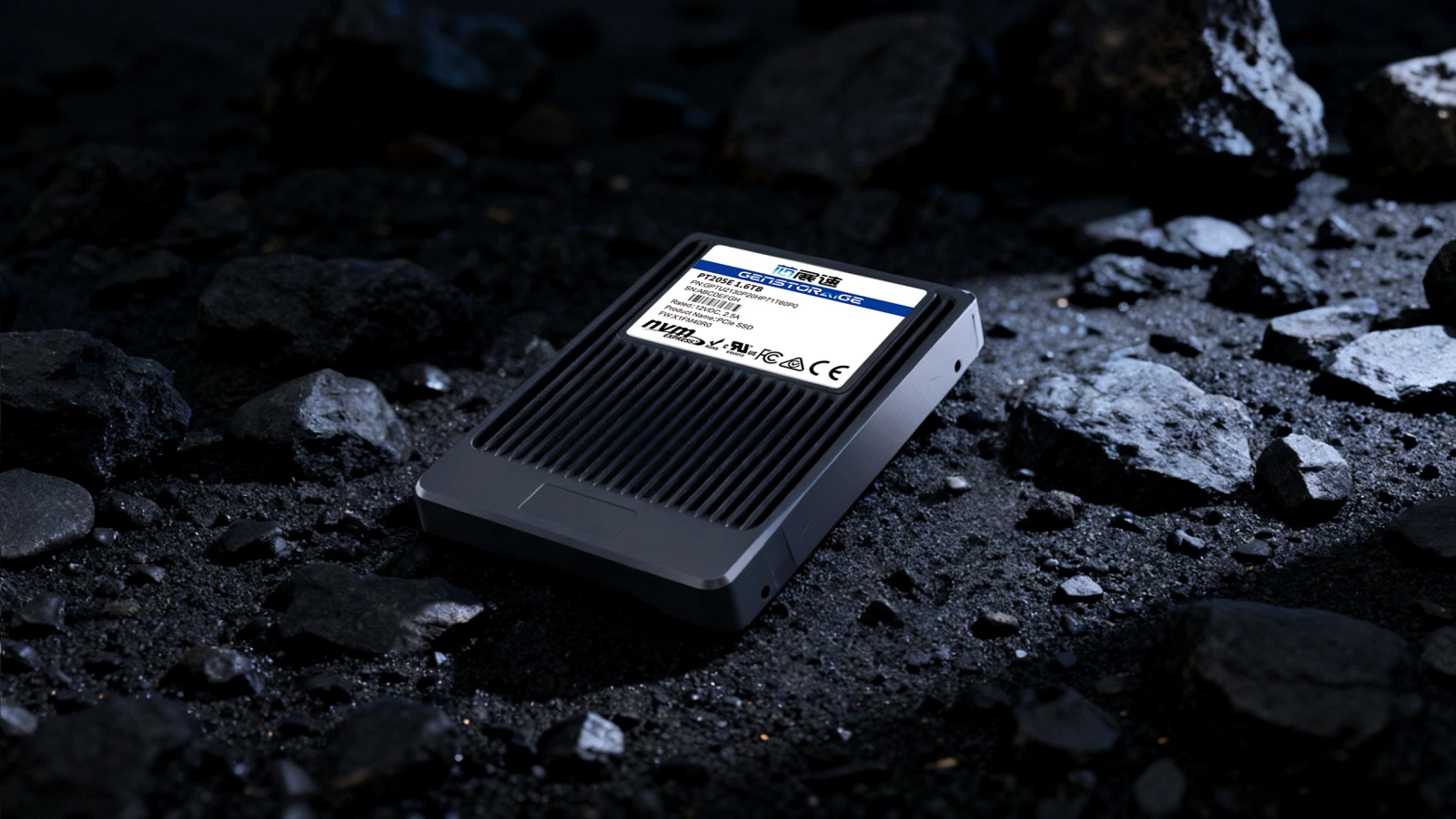

Next-Generation PCIe Gen 5 Enterprise Storage
The enterprise P Series PT205 adopts next-generation, higher-layer-count 3D TLC NAND, delivering reliability and performance beyond industry standards to create a high-performance, cost-effective enterprise storage solution made in China.

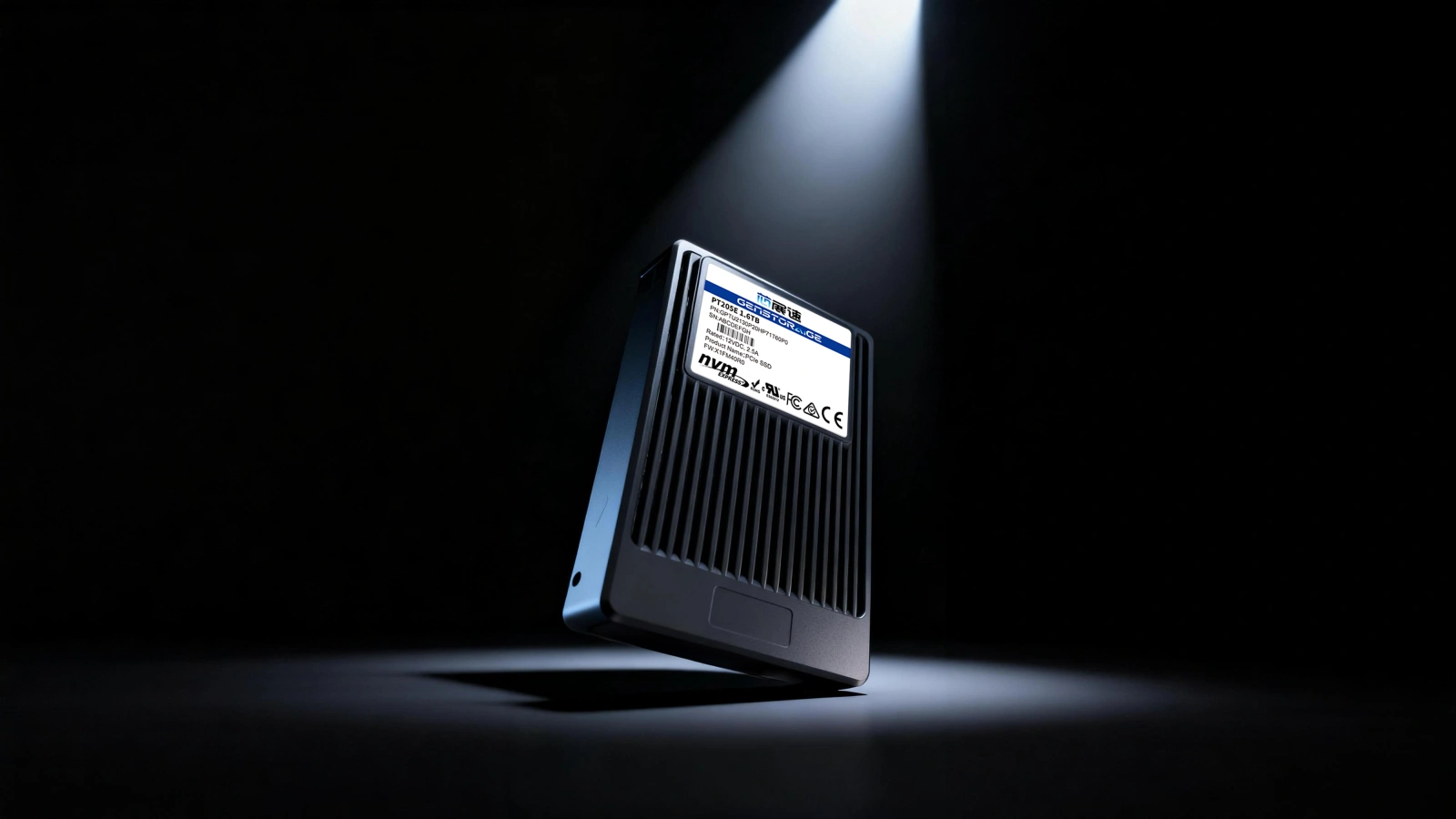

Standardized Design, Easy to Manage
Compliant with the PCI Express Base Specification Rev. 5.0 and NVM Express Base Specification Rev. 2.0, supporting PCIe AER (Advanced Error Reporting) and the NVMe-MI management interface, and compatible with the Datacenter NVMe SSD specification — enabling unified deployment and management on enterprise platforms.
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.

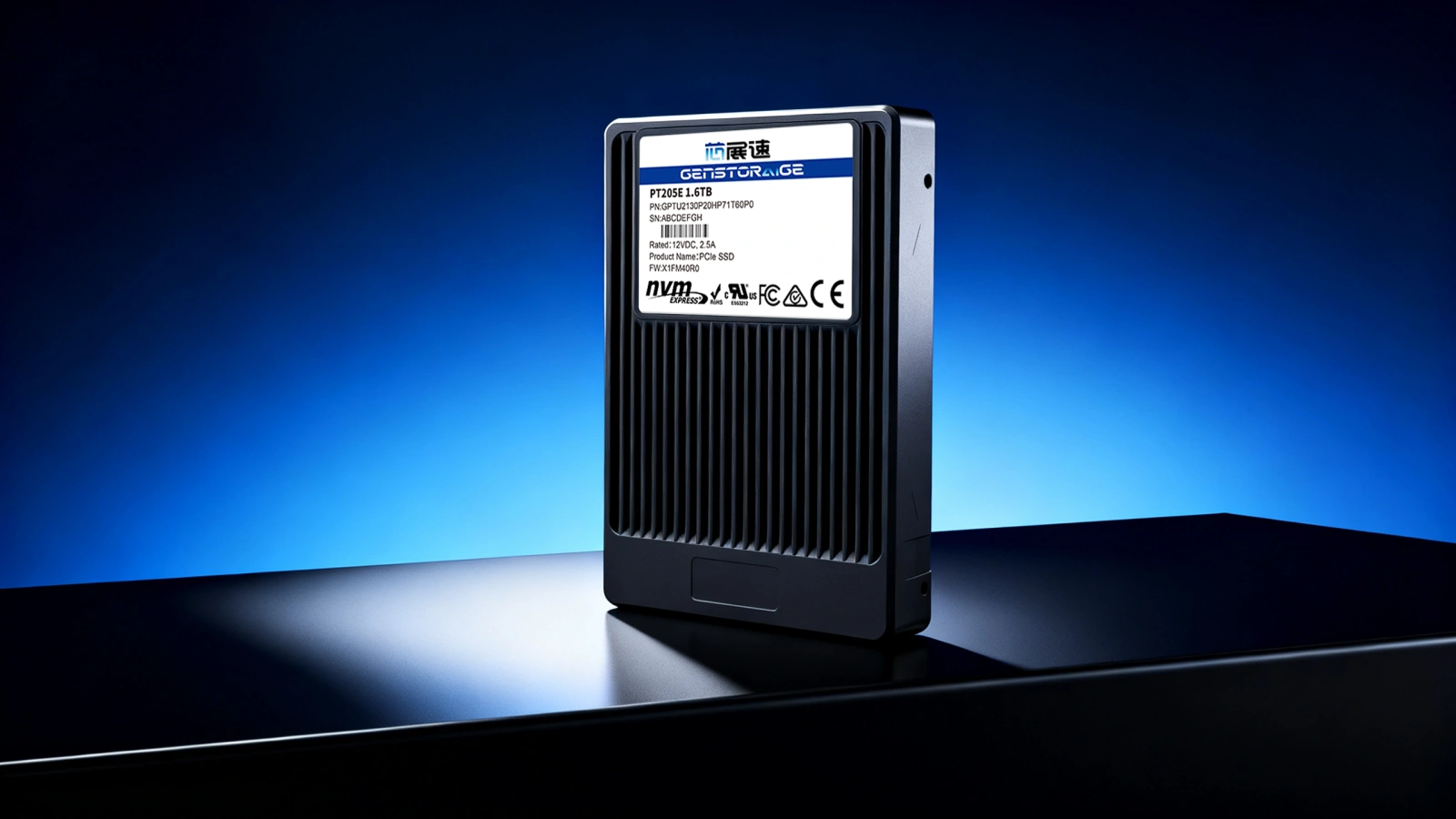

Sequential read/write up to 14,800/11,000 MB/s, random read/write up to 3,300K/1,050K IOPS, and average random read/write latency as low as 60/9μs. Active power under 25 W; idle power under 5 W.
A comprehensive leap in both performance and energy efficiency.
Designed for enterprise workloads such as cloud computing, databases, virtualization, AI training & inference, and high-performance computing, providing data centers with a high-throughput, low-latency storage foundation.
End-to-end data path protection, metadata protection, power-loss protection, and thermal throttling, with built-in hardware AES-XTS 256-bit encryption, TCG Opal 2.0 and Sanitize compatibility, a 2.5-million-hour MTBF, and a 5-year warranty across the series.
A full-process quality management system spanning design validation, component screening, and production testing ensures durable, reliable operation in demanding enterprise environments.
| Product | PT205P | ||||
|---|---|---|---|---|---|
| Capacity | 1920GB | 3840GB | 7680GB | 15360GB | 30,720GB |
| Sequential read (MB/s) | 14800 | 14800 | 14800 | 14,800 | 14800 |
| Sequential write (MB/s) | 2,300 | 4,600 | 9,200 | 11,000 | 10,000 |
| Random read (IOPS) | 1,400K | 2,700K | 3,300K | 3,250K | 2,800K |
| Random write (IOPS) | 75K | 220K | 480K | 580K | 480K |
| Form factor | E1.S / U.2 | U.2 | |||
| Product PN | GPTU2110P20HP91T9200 | GPTU2110P20HP93T8400 | GPTU2110P20HP97T6800 | GPTU2110P20HP915T300 | GPTU2110P20HP930T700 |
| Product | PT205E | ||||
|---|---|---|---|---|---|
| Capacity | 1600GB | 3200GB | 6400GB | 12800GB | 25,600GB |
| Sequential read (MB/s) | 14800 | 14800 | 14800 | 14,800 | 14800 |
| Sequential write (MB/s) | 2,300 | 4,600 | 9,200 | 11,000 | 10,000 |
| Random read (IOPS) | 1,400K | 2,700K | 3,300K | 3,250K | 2,800K |
| Random write (IOPS) | 220K | 480K | 980K | 1,050K | 950K |
| Form factor | E1.S / U.2 | U.2 | |||
| Product PN | GPTU2130P20HP91T6000 | GPTU2130P20HP93T2000 | GPTU2130P20HP96T4000 | GPTU2130P20HP912T800 | GPTU2130P20HP925T600 |
| Functional features | |
|---|---|
| Power consumption | Idle <5W, active <25W |
| Average random read/write latency | 60/9 μs (QD=1) |
| Interface | PCIe Gen5 x4, single-port x4 / dual-port 2x2, PCIe AER (advanced error reporting) |
| Media | 3D TLC |
| Endurance (DWPD) | PT205P: 1 DWPD / PT205E: 3 DWPD |
| UBER | <1 sector per 10^18 bits read |
| MTBF | 2.5 million hours |
| Operating temperature | 0°C ~ 70°C |
| Storage temperature | -40°C ~ 85°C |
| Warranty | 5 years |
| Features | 128 namespaces, dual-port, metadata protection, thermal throttling, power-loss protection, hardware AES-XTS 256-bit encryption, SMBus support |
GenstorAIge Technology (Beijing) Co., Ltd. — Building AI-Native storage, to make data more intelligent.
