Comprehensive Data Protection
End-to-end data protection, metadata protection, power-loss protection, and thermal throttling, with a 2.5-million-hour MTBF, a UBER of less than 1 sector per 10¹⁸ bits read, and a 5-year warranty across the series.
PT208PCIe 5.0 SSD with Domestically Produced NAND

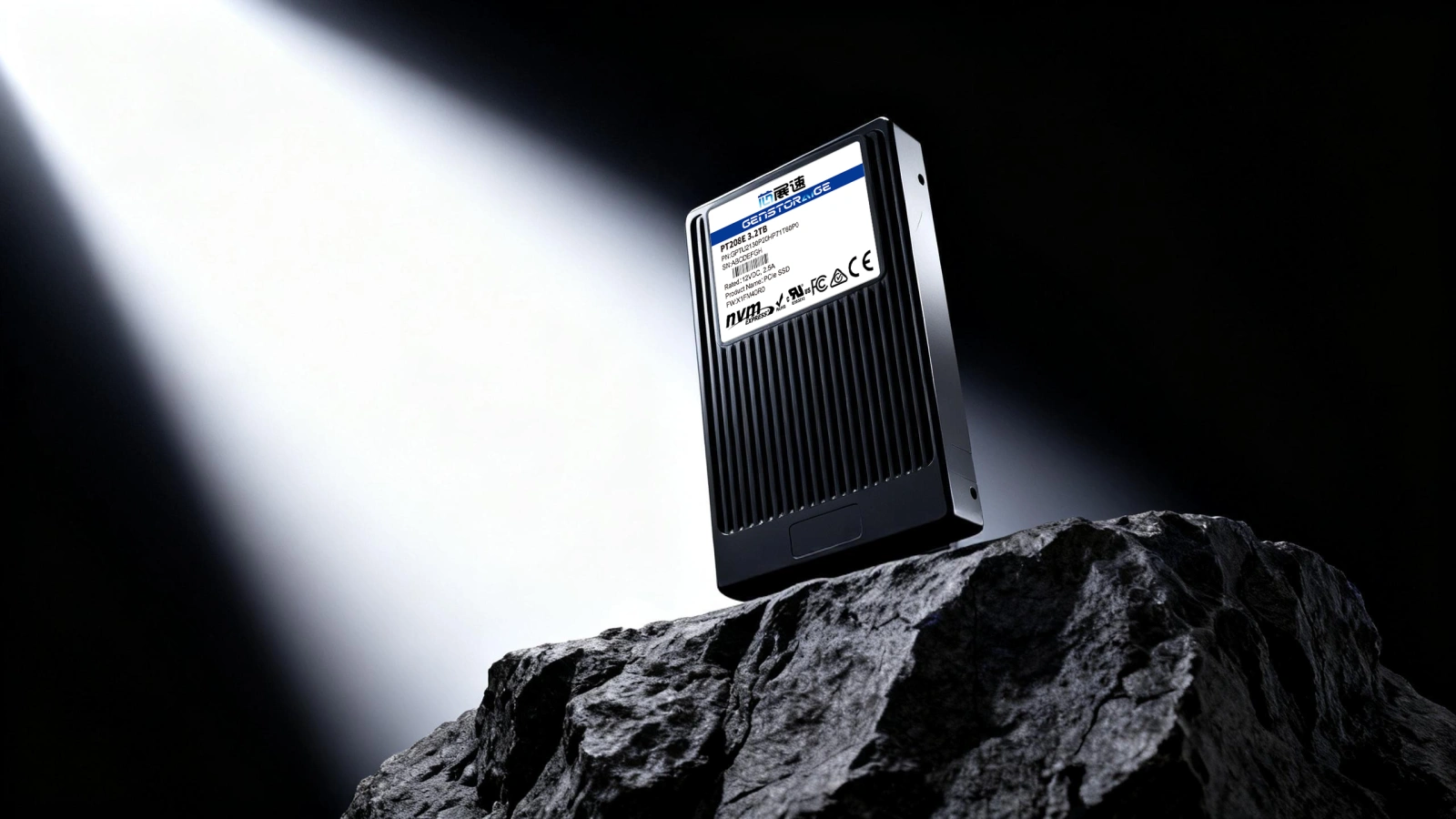

The PT208 enterprise SSD
Built with domestically produced YMTC 3D TLC NAND for full supply-chain independence at the media level. Available in single-port and dual-port configurations, it delivers domestically produced, high-performance storage for data centers and critical infrastructure.
PT208
High-Performance PCIe Gen 5 Made in China
The GenstorAIge PT208 enterprise P Series provides enterprise users with secure and trustworthy storage, with reliability and performance exceeding industry standards.
PT208
Standards-Compliant, Broadly Compatible
Compliant with the PCI Express® Base Specification Rev. 5.0 and NVM Express® Base Specification Rev. 2.0, supporting PCIe AER and the NVMe-MI management interface, and compatible with the SFF-8639 module specification — integrating seamlessly into mainstream enterprise platforms.
About GenstorAIge
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.
Unleashing Gen 5 Bandwidth
Sequential read/write up to 14,500/12,000 MB/s, random read/write up to 3,300K/1,100K IOPS, and average random read/write latency as low as 55/7μs. Active power under 25 W and idle power of just 5 W, balancing powerful performance with energy efficiency.
Key Applications
Serving data centers, critical infrastructure, cloud computing, and core government and enterprise systems, providing secure and trustworthy storage for scenarios requiring supply-chain independence.
Full-Process Quality Assurance
From design validation and component selection to production testing, every stage is held to standards above industry benchmarks, ensuring long-term stable operation in enterprise environments.
Specifications
| Product | PT208P | ||
|---|---|---|---|
| Capacity | 3840GB | 7680GB | 15360GB |
| Sequential read (MB/s) | 14,500 | 14,500 | 14,500 |
| Sequential write (MB/s) | 6,200 | 11,300 | 12,000 |
| Random read (IOPS) | 3,200K | 3,200K | 3,300K |
| Random write (IOPS) | 300K | 580K | 700K |
| Form factor | U.2 | ||
| Product PN | GPTU2110P20Y803T8400 | GPTU2110P20Y807T6800 | GPTU2110P20Y8015T300 |
| Product | PT208E | ||
|---|---|---|---|
| Capacity | 3200GB | 6400GB | 12800GB |
| Sequential read (MB/s) | 14,500 | 14,500 | 14,500 |
| Sequential write (MB/s) | 6,200 | 11,300 | 12,000 |
| Random read (IOPS) | 3,200K | 3,200K | 3,300K |
| Random write (IOPS) | 600K | 1,050K | 1,100K |
| Form factor | U.2 | ||
| Product PN | GPTU2130P20Y803T2000 | GPTU2130P20Y806T4000 | GPTU2130P20Y8012T800 |
| Functional features | |
|---|---|
| Power consumption | Idle 5W, active <25W |
| Average random read/write latency | 55/7 μs |
| Interface | PCIe Gen5 x4, single-port x4 / dual-port 2x2, PCIe AER (advanced error reporting) |
| Media | 3D TLC |
| Endurance (DWPD) | PT208P: 1 DWPD / PT208E: 3 DWPD |
| UBER | <1 sector per 10^18bits read |
| MTBF | 2.5 million hours |
| Operating temperature | 0°C ~ 70°C |
| Storage temperature | -40°C ~ 85°C |
| Warranty | 5 years |
| Features | 128 namespaces, dual port, metadata protection, thermal throttling, power-loss protection, hardware AES-XTS 256-bit encryption, SMBus support |
GenstorAIge Technology (Beijing) Co., Ltd. — Building AI-Native storage, to make data more intelligent.
