A full lineup of Retimer and Redriver ICs meeting the needs of diverse hardware design conditions.

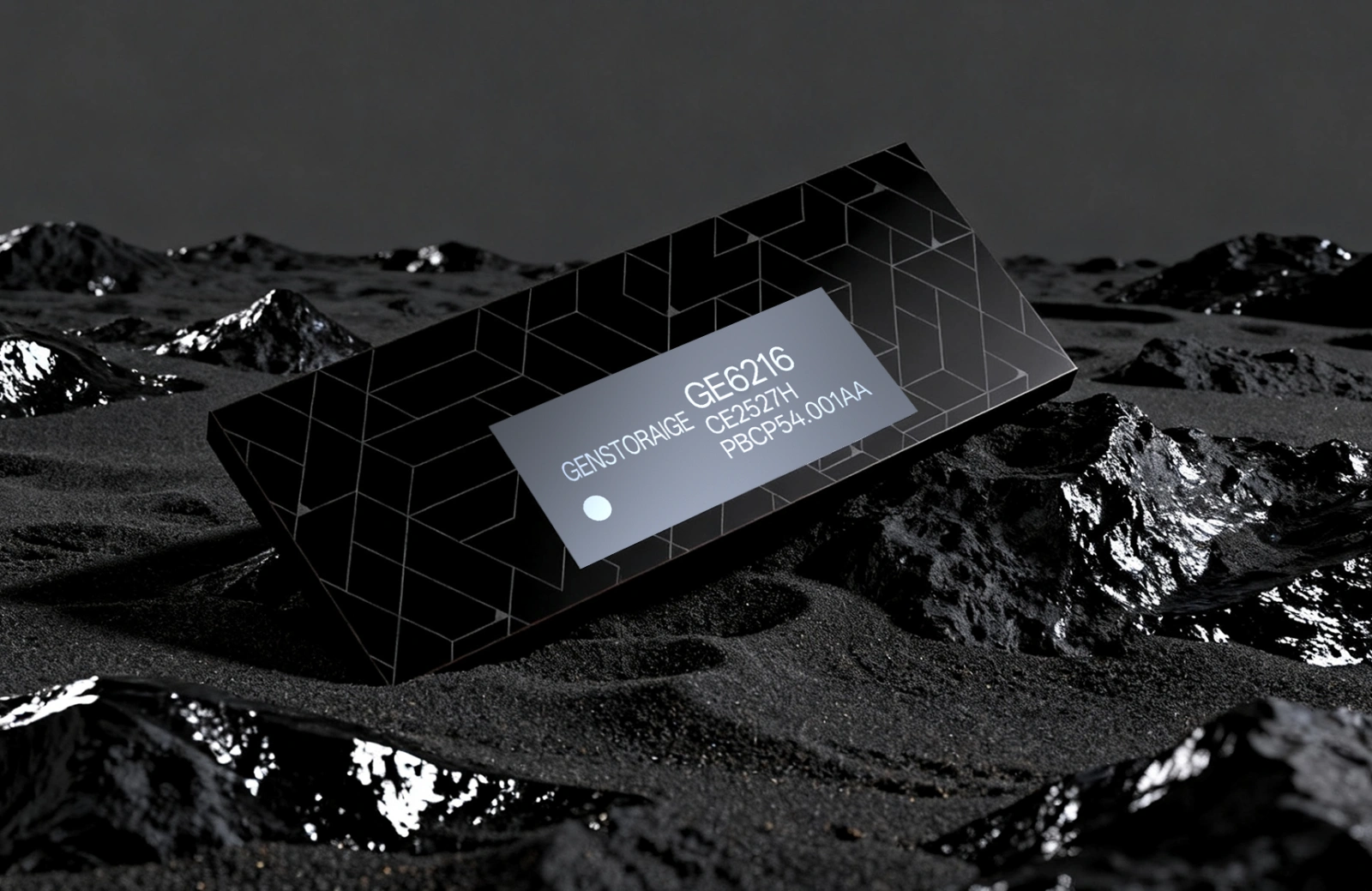

16-Lane Retimer IC
The GE6216 is a 16-lane bidirectional Retimer IC designed for PCIe 6.0 and CXL applications, supporting data rates up to 64 GT/s to extend the reach and signal robustness of PCIe links across motherboards, interconnect cables, and multi-connector backplanes.
High Speed, Powerful Equalization

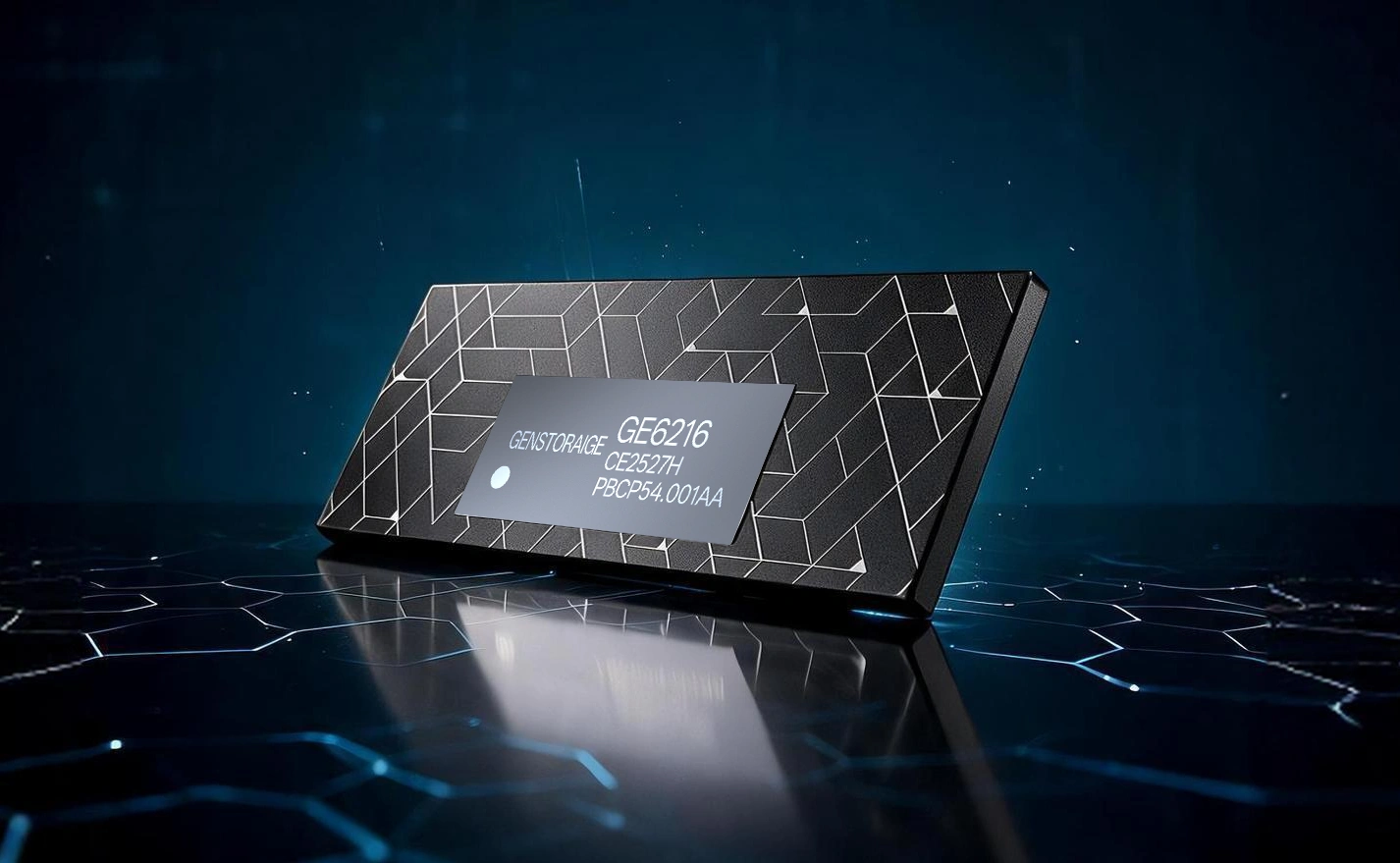

The GE6216 effectively compensates for high-loss channels, ensuring signal integrity in complex link scenarios such as AI server backplanes and cable interconnects.
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.
The GE6216 is designed to keep link latency low and power consumption efficient in PCIe 6.0 and CXL systems, supporting responsive high-speed interconnects in servers and accelerators.
Self-developed diagnostic tooling and pin-to-pin compatibility help engineers validate links quickly and adopt the GE6216 without board changes.
Self-developed diagnostic and analysis tools that monitor signal eye diagrams and link health in real time, with support for Lane Margining and receiver eye-diagram generation — helping quickly pinpoint issues and accelerate production validation.
Pin-to-pin compatible with mainstream industry solutions, enabling flexible multi-sourcing, seamless adoption, and rapid ramp to mass production.
GPU/AI systems, servers, high-performance computing equipment, hardware accelerators, and more.
Assisting customers with schematic optimization, PCB layout, and IC placement
Compliance testing support covering early-stage design, signal validation, system validation, and beyond
| Model | GE5208 / GE5216 | |
|---|---|---|
| Product | Retimer (PCIe Gen5, CXL 2.0) | |
| # of Channels | 8-lane | 16-lane |
| Package | Flip Chip | Flip Chip |
| Output Linear Range (100M/16G) | — | — |
| EQ Auto-tuning Tool | Diagnostic Tool | Diagnostic Tool |
| Max Equalization Range | 42dB | 42dB |
| Latency | <5 ns | <5 ns |
| Operating Junction Temperature | (-40 ~ 125°C) | (-40 ~ 125°C) |
| Power consumption | 13W | 6.6W |
| SLT Test | Yes | Yes |
| Pin-to-pin | Pin-to-pin compatible (PIN to PIN) | |
