Fully PCIe-Compliant
The GC5108 has passed PCI-SIG's comprehensive and rigorous interoperability testing, fully complies with all PCI-SIG standards and specifications, and is listed on the PCI-SIG Integrators List.

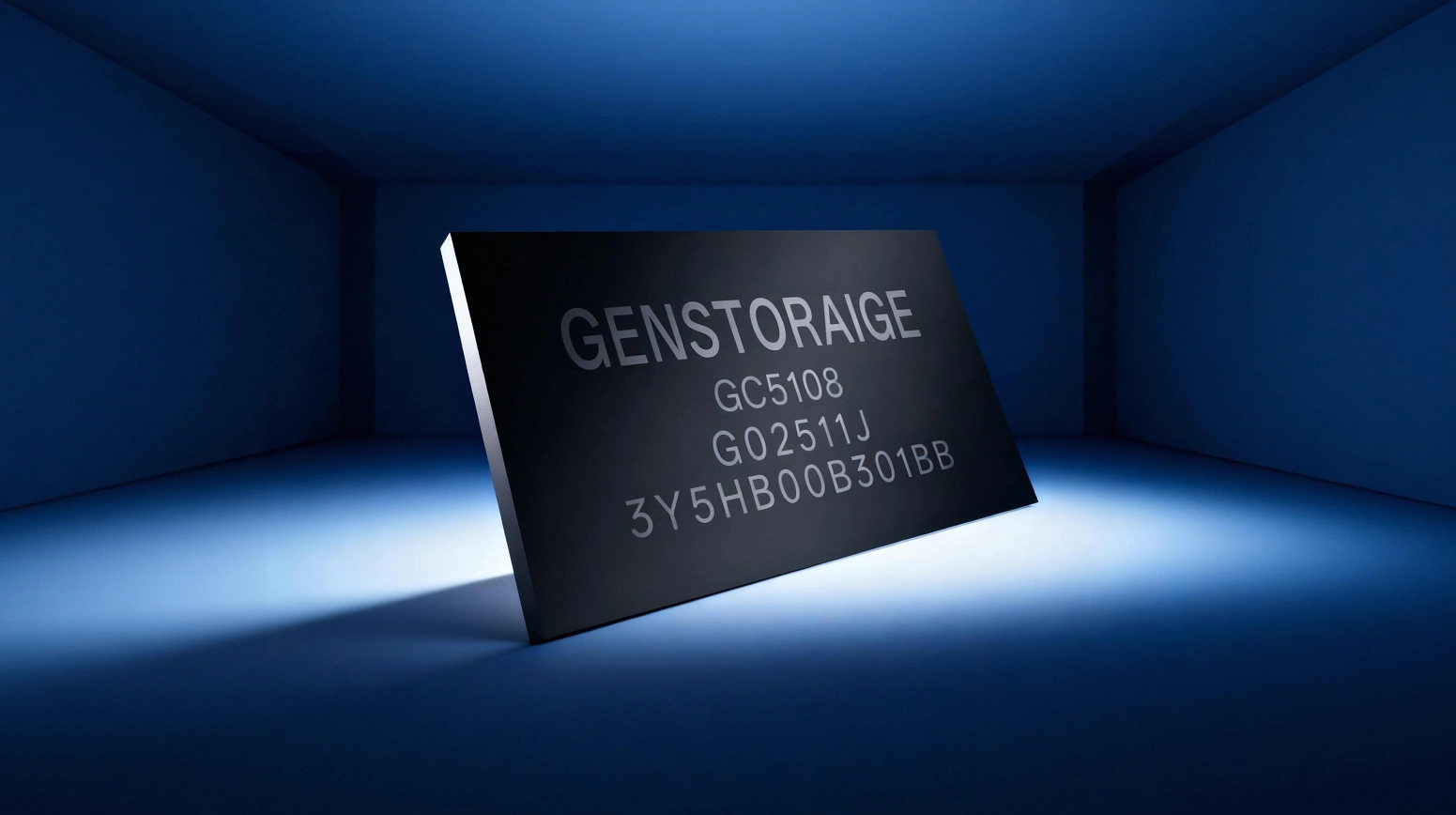

GC51088-Channel Redriver IC
Ultra-Wide Equalization Boost Range and High Linearity
The GC5108 is a linear, high-performance Redriver IC solution designed to unleash the full potential of high-speed signal transmission in the PCIe 5.0 era.
GC5108
Connectivity · Redriver

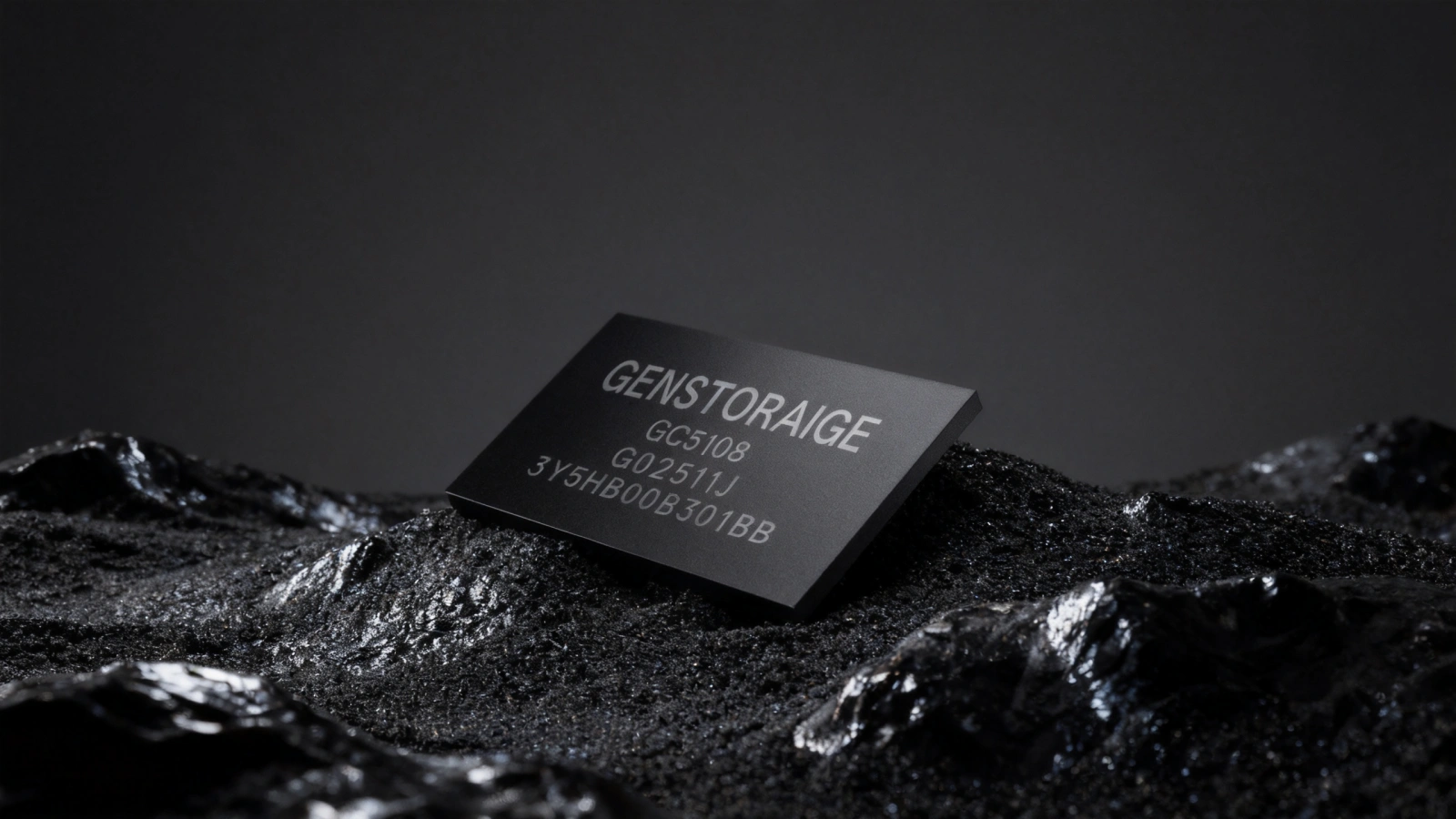

Built on an 8-channel signal-repeater architecture with programmable equalization, the IC delivers flexible output swing and flat gain across a variety of physical media.
GC5108
Connectivity · Redriver
The GC5108 delivers high-frequency signal enhancement while keeping inter-channel crosstalk and additive jitter extremely low. Its return-loss performance rivals that of passive components in real-world applications, making it a reliable Redriver choice for all kinds of scenarios.
About GenstorAIge
Built on the team's 20+ years of deep IT industry experience and a strong local R&D team, GenstorAIge is dedicated to delivering enterprise-class, industrial-class, and automotive-grade solid-state drives (SSDs), Retimer/Redriver ICs for PCIe Gen5/6, and highly innovative integrated AI training & inference solutions that lead China and meet world-class standards — injecting powerful momentum into the digital transformation of China and the world.

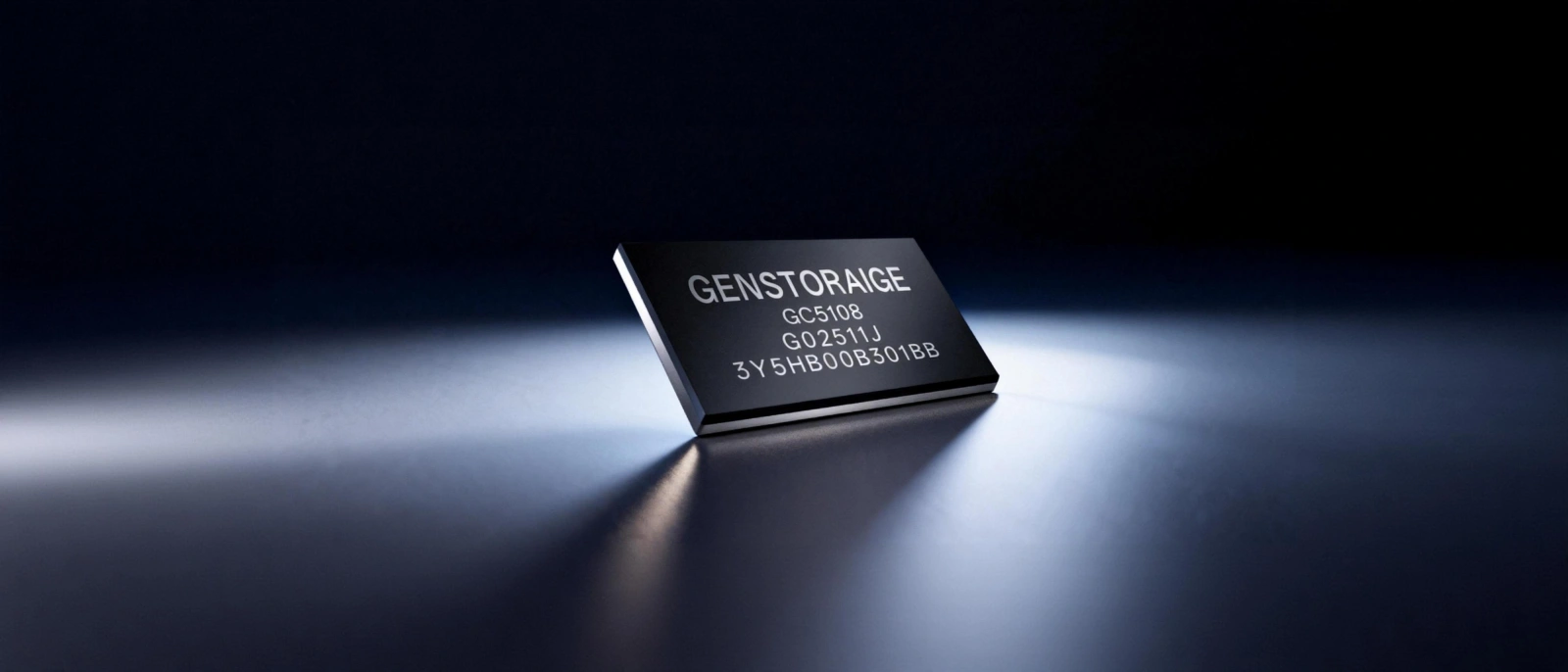

Ultra-Wide Equalization Boost Range
The GC5108 provides an equalization (EQ) boost range of up to 28.5 dB, combined with excellent linear output performance.

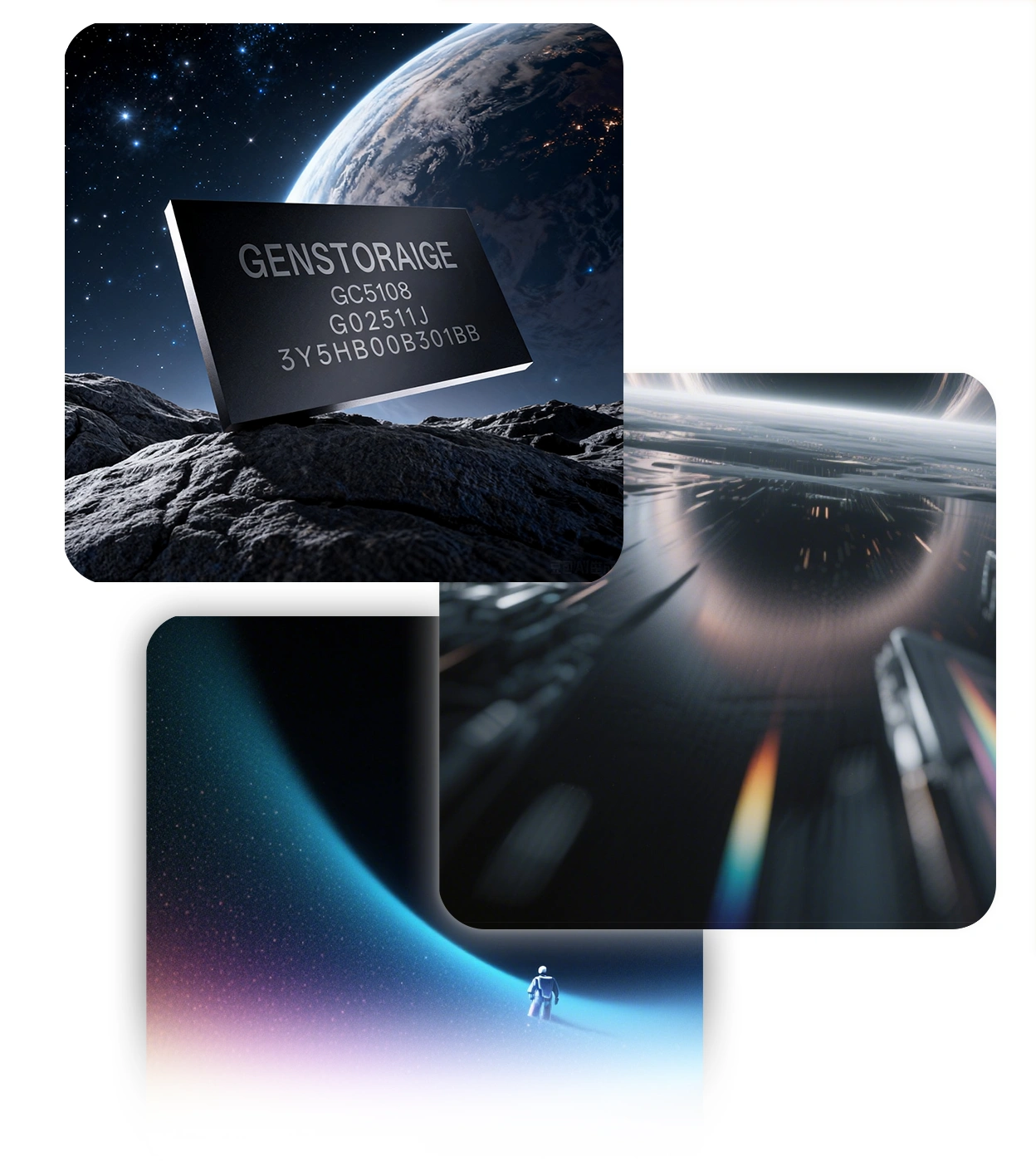

Maximum linear output range of up to 1,200 mV measured at peak-to-peak voltage (Vpp).
High Linearity
Thanks to its flexible output-swing design, the GC5108 transmits and receives signals with exceptional precision and minimal interference.
Independent Multi-Band Compensation
The GC5108 supports a unique I²C mode enabling independent compensation adjustment across multiple frequency bands.
Applications
Servers, automated system motherboards, high-performance computing equipment, hardware accelerators, and more.
PHiTUNE Automatic Equalization Tuning Tool
Automatically configures initial gain parameters for the target development environment, collects signal results, and uses AI technology to continuously search for optimal settings.
Specifications
| Item | Models | |||
|---|---|---|---|---|
| Product | — | Redriver (PCIe Gen5) | Redriver (PCIe Gen5) | Redriver (PCIe Gen6) |
| # of Channels | 2-lane/4-channel | 8-channel | 16-lanes | 16-lanes |
| Package | FlipChip | FlipChip | FlipChip | FlipChip |
| Output Linear Range (100M/16G) | 1200mVppd | 1200mVppd | 1200mVppd | 1500mVppd |
| EQ Auto-tuning Tool | PHiTUNE | PHiTUNE | PHiTUNE | PHiTUNE |
| Max Equalization Range | 0~20 dB | 0~28.5 dB | 0~28.5 dB | 0~20 dB |
| Latency | 70ps | 70ps | 70ps | 70ps |
| Operating Junction Temperature | (-40~85°C) | (-40~125°C) | (-40~125°C) | (-40~125°C) |
| Power consumption | 1W | 1.7W | 6.8W | 4W |
| SLT Test | — | — | — | — |
| Pin-to-pin | — | Pin compatibility (PIN to PIN) | Pin compatibility (PIN to PIN) | Pin compatibility (PIN to PIN) |
